Benelli 1930ca 175 Turismo 172 cc 1 cyl OHC 3603

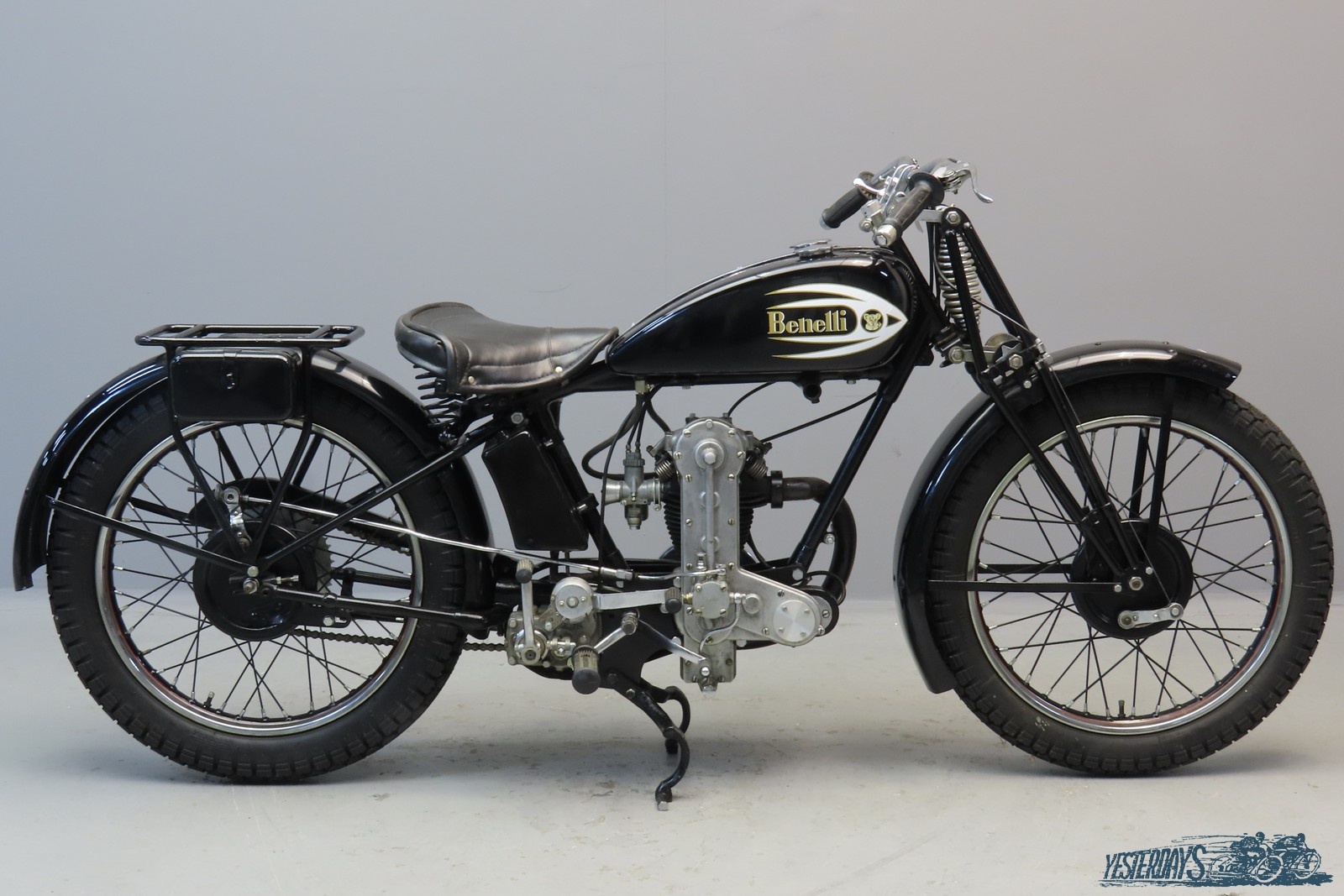

Benelli 1930ca “175 Turismo” 172 cc OHC single frame # C14662 engine # A14662

The firm of Benelli was founded in the Italian village of Pesaro as a repair workshop by widow Teresa Benelli to provide a future for her six sons. Initially, the brothers worked in a small garage where they created their first motorcycle in 1919. That first model was not a success so it was further developed and brought on the market in 1921. This “Velomotore” was a light 124 cc two stroke and within a few years this design was developed for motorcycle racing. The youngest of the Benelli brothers, Tonino, turned out to be one of the most talented Italian racers in the 1920s and 1930s. He made his debut in 1923 and started racing the newly-developed 172 cc model towards the end of the twenties. This sophisticated outside-flywheel engine had been developed by his brother Giuseppe and had a gear-driven overhead camshaft. It is said that Giuseppe Benelli was inspired by a theoretical study of an engine by Edward Turner published in 1925 by the French magazine Moto Revue.
Giuseppe, in order to beat the competition, did not waste time and completely reinterpreted that project introducing a simple as ingenious solution to eliminate the negative effects of thermal expansion. The five straight-toothed gears of the ohc drive (crankshaft, three idlers, camshaft) were placed in a thin aluminum housing on the right side of the engine. The whole was fixed to the cylinder head in such a way that it could accommodate for the differences in expansion between the aluminium case and the cast iron cylinder and head. The engine’s performance was equal or even superior to the 250 cc class machines of that time. Tonino won four Italian titles in the 175 cc class in 1927, 1928, 1930 and 1931. These accomplishments gave a great boost to the sales of the 172 cc model that was available to the public in “175 Sport” and “175 Turismo” versions. Unfortunately Tonino died in a car accident on 27 September 1937; the Tonino Benelli Stadium in the city of Pesaro was named after him. The 175 cc was produced in different models until 1934, when 215 cc and 493 cc 4-strokes were presented. The Turismo version was equipped with carrier and toolboxes and had a single exhaust. The Sport versions had a higher compression ratio. This Turismo with bore x stroke dimensions of 62 x 57 mm delivers more than 6 hp @ 6230 rpm. She’s an older restoration and comes with outside flywheel, hairpin valve springs and has been converted to foot gear change. For better running a more modern carburettor has been fitted.
