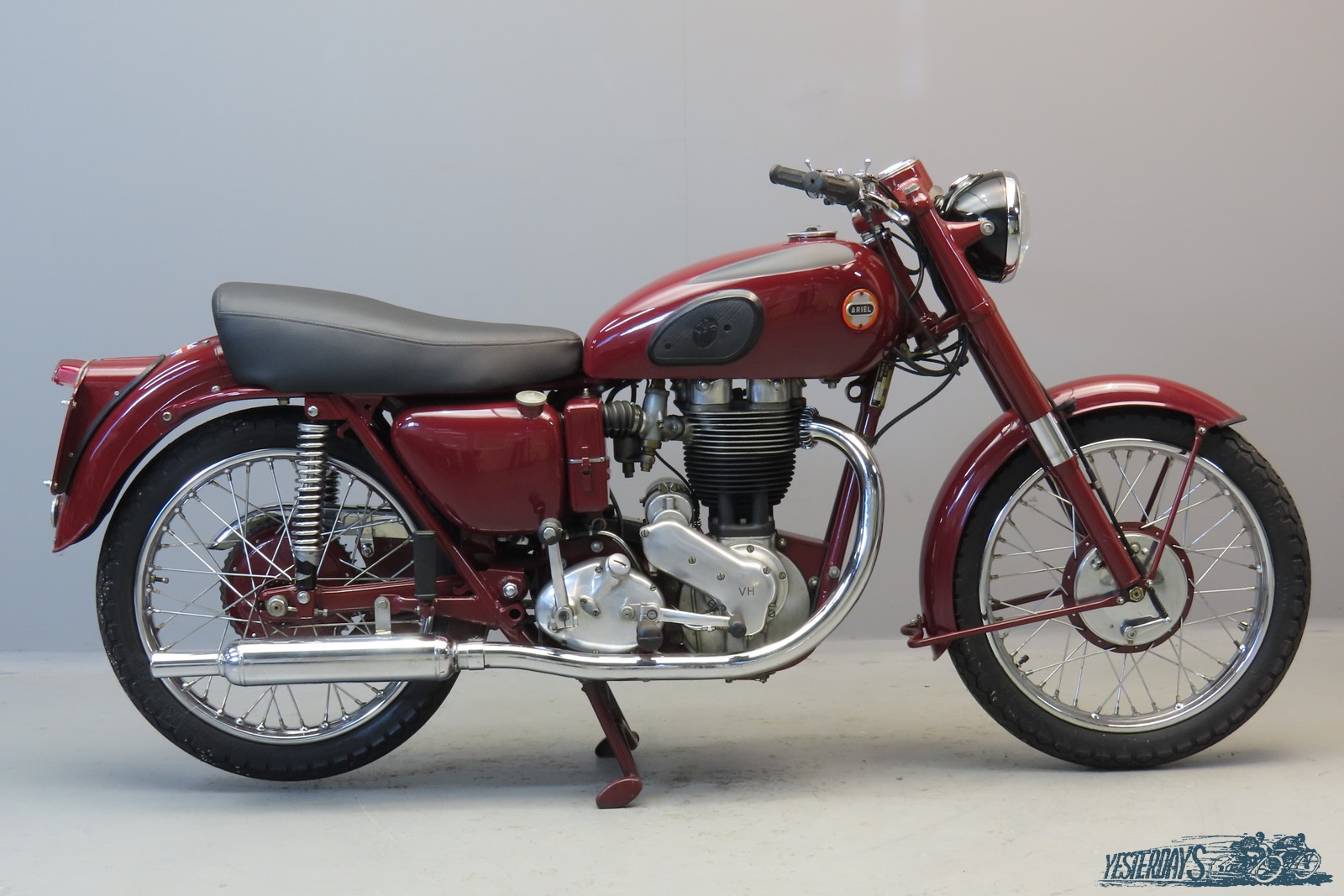

ARIEL 1954 Model VH Red Hunter 497cc 1 cyl ohv 3603

ARIEL 1954 Model VH 497cc “Red Hunter” frame # KS1286 engine # PD104

The basics of the “Red Hunter“ design can be traced back to a Val Page, but the name first came into use in the 1932 programme that had been designed by Edward Turner. The new sporty OHV models in 250, 350 and 500cc capacities were very good-looking, reliable and sturdy. They became great performers in off-road competition work as well as for fast touring and were further developed and produced till 1960, when Ariel management decided to concentrate on two strokes and phase out four stroke production. New for the 1954 model year is the swinging arm rear suspension. Two Red Hunter models are produced, a 347cc version and a 497cc model that has bore x stroke dimensions of 81.8 x 95mm. The crankshaft is mounted on three heavy duty roller bearings and the big end features double row rollers. The frame is of the duplex cradle type, fully triangulated, which ensures great rigidity. There are three stands on board, an easy-lift spring-up central, a strong tubular front, and a practical prop stand. The compression ratio is 6.8:1 and the engine turns out a healthy 26hp@6,000rpm. Top speed is about 135km and the average petrol consumption 1:25; the machine weighs fully equipped about 175 kg.
This VH is a very practical and reliable everyday touring machine. She has been both mechanically and cosmetically restored; for more comfort modern KONI shock absorbers have been fitted. She comes with Bosch magdyno and 185 km Smiths speedo.

A detailed photo report (approx. 30 photos) is available for every motorcycle on our website, which we send upon request.
