Algemene informatie
Type: Bouwmachine
Bouwjaar: 2024
Referentienummer: DPX-30025
Serienummer: 2002005
Gewichten
Ledig gewicht: 2.250 kg
Functioneel
CE markering: ja
Financiële informatie
BTW: De getoonde prijs is exclusief BTW
Garantie
Garantie: Warrenty Card - 12 Months
Overige informatie
Afmetingen (LxBxH) (m): 2,45x1,4x2
Meer informatie
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

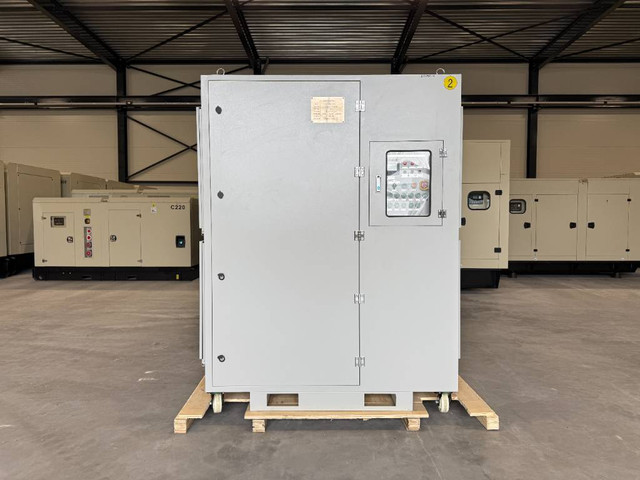

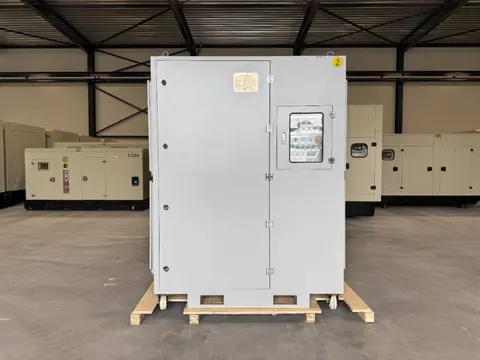

AC400V-1000kW Automatic Load Bank
Rated Voltage: 3P4W AC400V 50/60Hz
Power Supply: External 3P5W 400VAC 50 Hz
Rated Power: 1010 kW at 400V
Duty Cycle: Continuous
Cooling type: Forced Air Cooling
(Horizontal air intake and exhaust cooling, there will be louver at air outlet and inlet.)
Rated Voltage & Frequency: 400VAC; 3 phase 4 wire, 50/60Hz
Load Step: Resistive Load: 1, 2, 2, 5, 10, 20, 20, 50, 100, 200, 200, 200, 200kW
Wire Connection:
- Load bank input—busbar (star coupling “Y”)
- Control power input—terminal block
Communication Interface: RS232/RS485
