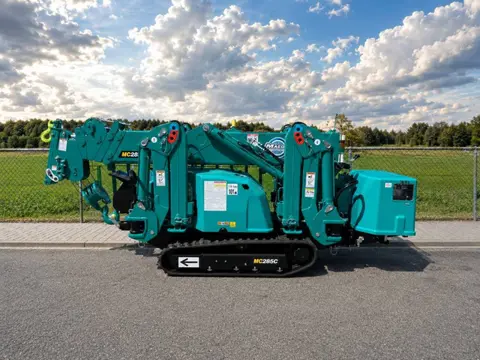

Maeda MC 285C-3 CRME | 2023 (bj 2023)

Algemene informatie
Merk: Maeda
Type: MC 285C-3 CRME | 2023
Type: Minikraan
Bouwjaar: 2023
Bedrijfsuren: 1
Toepassingsgebied: Bouw

Aandrijving
Merk motor: Yanmar

Gewichten
Ledig gewicht: 2.160 kg

Functioneel
Hefcapaciteit: 2.820 kg
Hefhoogte: 870 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Financiële informatie
BTW: De getoonde prijs is exclusief BTW

Overige informatie
Resterend profiel voorbanden: 100
Resterend profiel achterbanden: 100
Maximaal hefvermogen einde jib: 100 kg
Emissieklasse: Stage IIIA / Tier IV interim
Leveringsvoorwaarden: EXW
Afmetingen (LxBxH) (m): 3,285x0,75x1,47
Productieland: JP

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

• Hijshaken

=== KEY SPECIFICATIONS ===
Year of manufacture: 2023
Operating hours: 0 h (new)
Max. lifting capacity: 2,820 kg (at 1.4 m)
Max. lifting height: 8.7 m
Jib outreach: 8.20 m
Drive system: Diesel engine + electric pump (300V, 5.5 kW)
Diesel engine: Yanmar 2TNE68-ME (6.57 kW)
Remote control: Yes (cable control, micro-speed, outrigger control)
Jib: Included (luffed jib)
Attachments: Beacon light, hour counter, 4-fall hook block, black rubber tracks, LMB (Load Moment Limiter), hydraulic winch, searcher hook
Tracks: Rubber tracks (new)
Track size: 975 × 200 mm
Weight: 2,160 kg
CE certification: Yes

=== HIGHLIGHTS ===
Very compact and powerful mini crane with 2.82 t lifting capacity
Automatic telescopic mast
360° continuous slewing
Multi-position stabilisers
Ready for immediate use and CE certified

=== CONDITION ===
New machine – never used, factory-new condition.
Fully tested and inspected.
Inspection available upon request.

=== LOCATION & DELIVERY ===
Located in Sittard, the Netherlands
Worldwide delivery possible
Price: €95,000 (EXW / excluding VAT)

The Maeda MC 285C-3 ERME combines a Yanmar diesel engine with a 300V electric pump, providing a compact and powerful solution for installation, glazing and maintenance work in confined spaces.
Fully CE certified and available immediately.

=== DELIVERY ===
Crane loading available on request
Worldwide shipping via Collé Rental & Sales logistics team

Remote control, hydraulic winch, searcher hook
