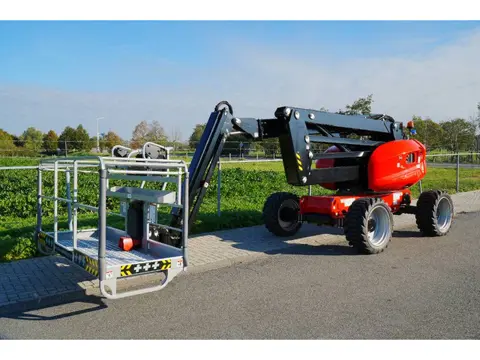

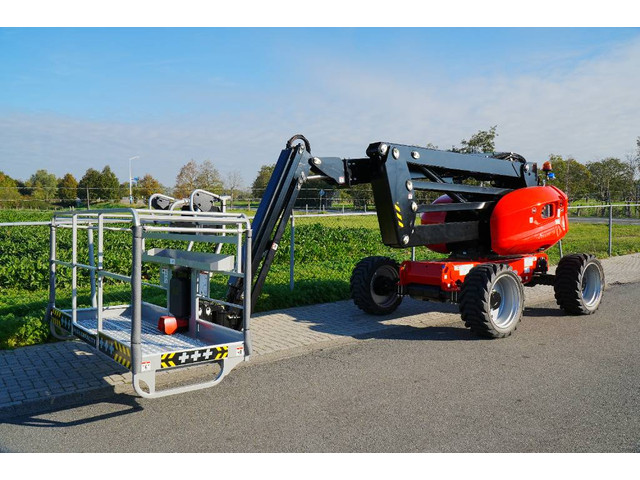

Manitou 160 ATJ+ CR 4WS | 2026 (bj 2026)

Algemene informatie
Merk: Manitou
Type: 160 ATJ+ CR 4WS | 2026
Type: Knikarmhoogwerker
Bouwjaar: 2026
Kleur: Rood
Bedrijfsuren: 4

Aandrijving
Brandstofsoort: Diesel
Merk motor: Kubota

Gewichten
Ledig gewicht: 7.750 kg

Functioneel
Mast: knikarm
Hefcapaciteit: 408 kg
Werkhoogte: 1.621 cm
Afmetingen laadruimte: 709 x 238 x 247 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Overige informatie
Resterend profiel voorbanden: 100
Resterend profiel achterbanden: 100
Emissieklasse: Stage V / Tier IV final
Leveringsvoorwaarden: EXW
Max. horizontale reikwijdte: 852 m
Maximaal draaibereik in graden: 360
Maximaal draaibereik platform: 180
Productieland: FR

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

== KEY SPECIFICATIONS ==
Year: 2026
Hours: 4 h
Working height: 16.21 m
Maximum horizontal outreach: 8.52 m
Platform capacity: 408 kg
Platform dimensions: 2300x900 mm
Turret rotation: 360° continuous
Platform rotation: 90° left / 90° right
Jib movement: +66.5° / -65.8°
Drive: Diesel / 4WD
Engine: Kubota D1105-EF33
Engine power: 18.5 kW / 24.8 HP
Operating weight: 7750 kg
CE certification: Yes

== EQUIPMENT & FEATURES ==
Four-wheel drive
Four-wheel steering with crab mode
Oscillating front axle
Foam-filled rough-terrain tyres
Differential lock on rear axle
Limited-slip front axle
Secondary Protection System (SPS)
Stop & Go system
Backup electrical pump
Integrated diagnostic system
Large 2300 mm work platform with three entries
Large colour display at ground controls
LED rotating beacon
230 V electrical pre-fitting

== CONDITION ==
New and unused machine with only 4 delivery and testing hours.
Inspection and operational testing are possible by appointment.

== DESCRIPTION ==
The 2026 Manitou 160 ATJ+ CR 4WS is a new diesel-powered articulated boom lift with only 4 delivery and testing hours. It offers a working height of 16.21 m, a maximum horizontal outreach of 8.52 m and a high-capacity 408 kg platform for up to 3 persons.
Equipped with four-wheel drive, four-wheel steering with crab mode, an oscillating front axle and a large 2300 mm work platform, this machine is designed for demanding outdoor access applications and rough-terrain operation.

== PRICE, LOCATION & DELIVERY ==
Price: On request
Location: Sittard, the Netherlands
Delivery terms: EXW
Worldwide transport can be arranged by Collé Rental & Sales.

Four-wheel drive
Four-wheel steering with crab mode
Oscillating front axle
Foam-filled tyres
Differential lock on rear axle
Limited-slip front axle
Secondary Protection System (SPS)
Stop & Go system
Backup electrical pump
LED rotating beacon
230 V electrical pre-fitting
Large 2300 mm platform
