MAGNI HTH 16.10 | 2023 (bj 2023)

Algemene informatie
Merk: Magni
Type: HTH 16.10 | 2023
Type: Verreiker
Bouwjaar: 2023
Kleur: Red
Bedrijfsuren: 1

Technische informatie
Vermogen: 160 kW (218 PK)
Chassisvorm: star
Ledig gewicht: 20.500 kg

Aandrijving
Brandstofsoort: Diesel
AdBlue-systeem: Ja
Aandrijving: Wiel
Merk motor: Volvo TAD582 VE

Asconfiguratie
Bandenmaat: 16.00-R25

Prestaties
Topsnelheid: 25 km/u

Functioneel
Hefcapaciteit: 16.000 kg
Hefhoogte: 970 cm
Maximale reikwijdte: 500 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Overige informatie
Emissieklasse: Stage V / Tier IV final
Leveringsvoorwaarden: EXW
Afmetingen (LxBxH) (m): 6,38x2,57
Productieland: IT

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

• Aanvullende hydraulica
• AdBlue
• Airconditioning
• Palletvorken

=== MAIN SPECIFICATIONS ===
Year: 2023
Operating hours: 0 h (new)
Maximum lifting capacity: 16,000 kg
Maximum lifting height: 9.70 m
Maximum outreach: 5.00 m
Drive type: Diesel
Transmission: Hydrostatic (automatic, 2-speed forward/reverse)
Four-wheel drive: Yes (4WD – 4WS)
Steering modes: Front-wheel steer / Coordinated steer / Crab steer
Stabilizers: No
Cabin: Enclosed (ROPS-FOPS Level 2 certified, pressurized)
Heated cabin: Yes (with full air conditioning and comfort seat)
Forks: Standard heavy-duty forks (Q-Fit carriage)
Tyres: Rough terrain (16.00-R25)
Engine manufacturer: Volvo TAD582 VE
Engine power: 160 kW (218 hp) @ 2,300 rpm
Maximum torque: 925 Nm @ 1,380 rpm
Displacement: 5.13 L, 4-cylinder inline
Emission class: Stage V / Tier IV Final
Operating weight: 20,500 kg
CE certification: Yes

=== HIGHLIGHTS ===
Selected from verified and reliable sources with traceable history
CE certified with complete documentation included
Equipped with a Volvo Stage V engine and hydrostatic transmission
Heavy-duty axles with planetary gearboxes and hydraulic differentials
Spacious climate-controlled cabin with 7” touchscreen MCTS system
Includes MyMagni (Trackunit), automatic parking brake, and Q-Fit tool carrier
Full CAN BUS electronics with integrated diagnostics and load management system

=== CONDITION ===
Brand-new machine – unused, factory-tested, and CE certified.
Fully inspected and ready for immediate delivery.
Inspection and demonstration available upon request.

=== LOCATION & DELIVERY ===
Located in Sittard, The Netherlands.
Worldwide delivery available.
Price on request (EXW / excl. VAT).

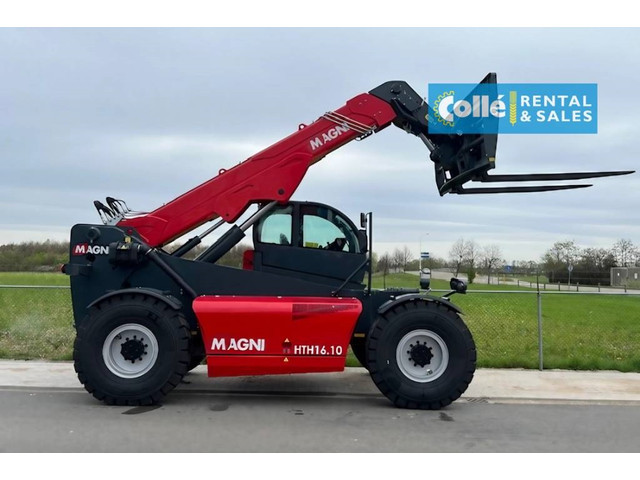

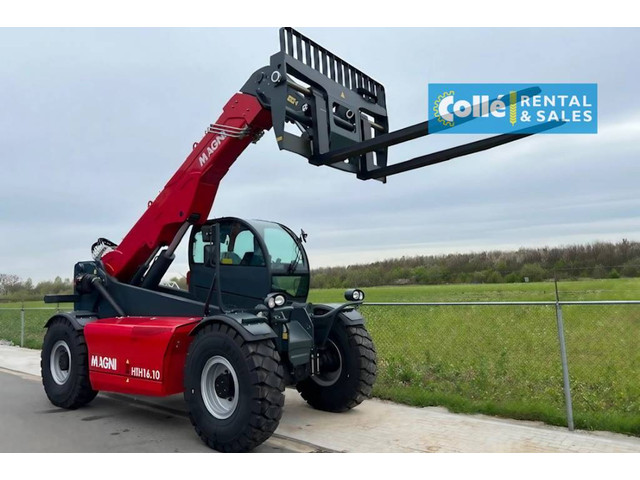

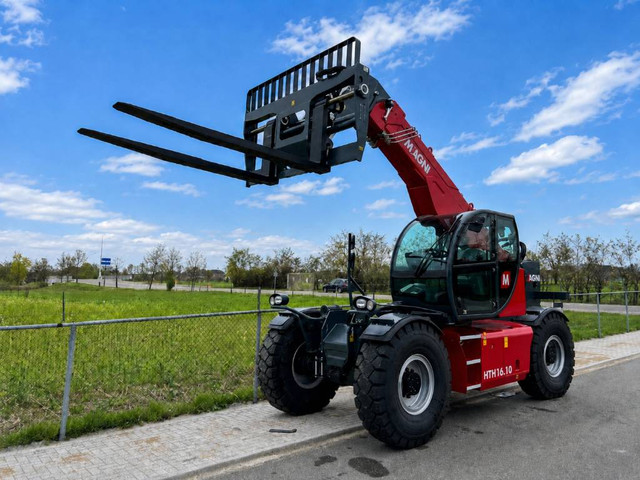

The Magni HTH 16.10 is a powerful heavy-duty telehandler designed for demanding lifting operations in industrial and construction environments.
With a maximum capacity of 16 tons and a lifting height of 9.7 meters, it combines power, precision, and superior operator comfort.
Powered by a Volvo Stage V engine and equipped with hydrostatic drive, 4-wheel steering, and load-sensing hydraulics, this machine ensures maximum efficiency and control.
The modern ROPS/FOPS cabin features the 7” Magni MCTS touchscreen, automatic RFID attachment recognition, and MyMagni remote connectivity for full operational monitoring.
Ideal for steel, mining, energy, and...
