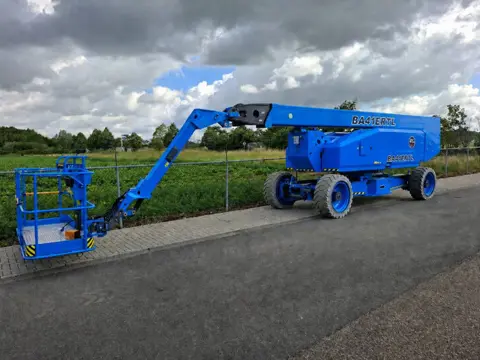

Dingli BA41ERTL | 2025 (bj 2025)

Algemene informatie
Merk: Dingli
Type: BA41ERTL | 2025
Type: Telescoophoogwerker
Bouwjaar: 2025
Kleur: Blauw
Bedrijfsuren: 9

Aandrijving
Brandstofsoort: Diesel
Aandrijving: Wiel
Merk motor: Dingli

Gewichten
Ledig gewicht: 22.250 kg

Functioneel
Mast: telescoop
Hefcapaciteit: 272 kg
Werkhoogte: 4.110 cm
Afmetingen laadruimte: 1211 x 244 x 310 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Overige informatie
Leveringsvoorwaarden: EXW
Max. horizontale reikwijdte: 1980 m
Maximaal draaibereik in graden: 360
Maximaal draaibereik platform: 180
Productieland: CN

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

=== KEY SPECIFICATIONS ===
Year: 2025
Operating hours: 9 h
Condition: New machine / delivery and test hours
Machine type: Self-propelled electric telescopic boom lift
Working height: 41.1 m
Platform height: 39.1 m
Max. horizontal outreach: 19.78 m
Max. working radius: 20.38 m
Up and over clearance: 19.0 m
Platform capacity: 272 kg
Max. occupants: 2 persons + 112 kg equipment
Platform dimensions (L x W): 2,440 x 910 mm
Turret rotation: 360° continuous
Platform rotation: 180°
Boom type: Telescopic boom with jib
Jib: Yes
Jib movement: 226°
Drive: Electric
Power: 358.4V DC
Charging voltage: 304–456V AC / 176–264V AC
Four-wheel drive: Yes
Four-wheel steering: Yes
Tyres: Rough terrain / 445/50D710
Stabilisers: No
Emission class: Zero emission / Electric
Weight: 22,250 kg
CE certification: Yes

=== HIGHLIGHTS ===
New 2025 Dingli BA41ERTL electric telescopic boom lift with only delivery and test hours
Large 41.1 m working height with 19.78 m horizontal outreach
272 kg platform capacity, suitable for 2 operators plus 112 kg equipment
Electric drive system with 358.4V DC power supply
Four-wheel drive and four-wheel steering for rough terrain applications
360° continuous turret rotation and 180° platform rotation
Telescopic boom with jib for excellent reach and positioning
CE certified and ready for professional use
Technical documentation available

=== CONDITION ===
New machine with only 9 delivery and test hours.
Clean original condition, fully checked and ready for use.
Inspection possible on request.

=== LOCATION & PRICE ===
Located in Sittard, the Netherlands.
Worldwide delivery possible.
Price on request, EXW / excluding VAT.

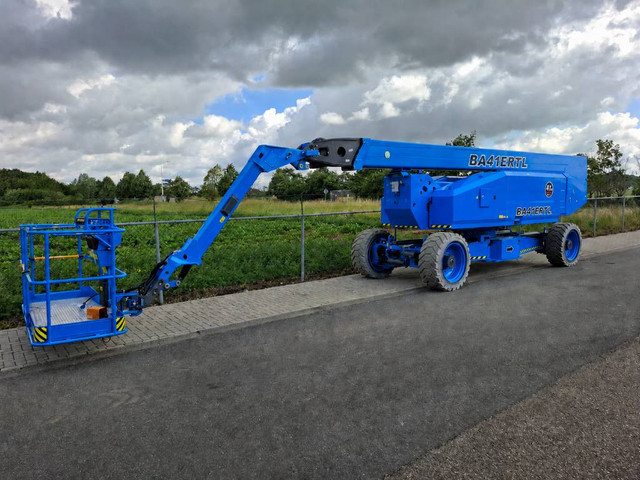

This Dingli BA41ERTL is a high-reach electric self-propelled telescopic boom lift with jib, designed for demanding outdoor and rough terrain applications.

With a working height of 41.1 m, 272 kg platform capacity, four-wheel drive, four-wheel steering and an electric drive system, this machine offers excellent reach, stability and performance for professional rental, construction and industrial use.

The electric drive makes this machine a cleaner and more efficient alternative to diesel-powered boom lifts.

The machine is CE certified, available from stock in Sittard and can be delivered worldwide.

=== DELIVERY ===
Crane loading possible on request for smooth transport.
Flexible shipping options available depending on destination and logistics requirements.
