Dingli BA17NE | 2026 (bj 2026)

Algemene informatie
Merk: Dingli
Type: BA17NE | 2026
Type: Knikarmhoogwerker
Bouwjaar: 2026
Kleur: Blauw
Bedrijfsuren: 1

Aandrijving
Brandstofsoort: Elektrisch
Aandrijving: Wiel
Merk motor: Dingli

Gewichten
Ledig gewicht: 7.950 kg

Functioneel
Mast: knikarm
Hefcapaciteit: 227 kg
Werkhoogte: 1.700 cm
Afmetingen laadruimte: 506 x 150 x 207 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Overige informatie
Leveringsvoorwaarden: EXW
Max. horizontale reikwijdte: 970 m
Maximaal draaibereik in graden: 355
Maximaal draaibereik platform: 180
Productieland: CN

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

=== KEY SPECIFICATIONS ===
Year: 2026
Operating hours: 1 h
Working height: 17.10 m
Platform height: 15.10 m
Max. horizontal outreach: approx. 9.70 m
Max. platform outreach: approx. 9.10 m
Up and over clearance: 7.00 m
Platform capacity: 225 kg
Max. occupants: 2 persons + 65 kg equipment
Platform size: 1.45 × 0.76 m
Superstructure rotation: 355° non-continuous
Platform rotation: 180°
Jib movement: -65° / +65°
Boom type: Articulating boom
Drive: Electric
Drive system: 2WD / Two-wheel drive
Steering: Two-wheel steering
Battery: 48V / 300Ah lead-acid maintenance-free battery
Charger: 48V / 35A
Tyres: Solid tyres
Tyre size: 28 × 12
Gradeability: 25%
Max. chassis angle: 3° / 3°
Machine weight: 7,950 kg
Transport dimensions: 5,060 × 1,500 × 2,060 mm
CE certification: Yes

=== HIGHLIGHTS ===
Carefully selected from reliable sources with verifiable history
CE certified and supplied with full documentation
Electric drive – zero emission operation
Compact width of only 1.50 m
Solid tyres and two-wheel steering
Self-levelling platform
Overload sensor with alarm
Tilt sensor with alarm
Onboard diagnostic system
Ready for immediate transport and use
Extensive technical documentation available

=== CONDITION ===
New machine with only 1 test hour.
Clean and unused condition, fully checked and tested by certified professionals.
Inspection possible on request.

=== LOCATION & PRICE ===
Located in Sittard, the Netherlands.
Worldwide delivery available.
Price on request, EXW / excluding VAT.

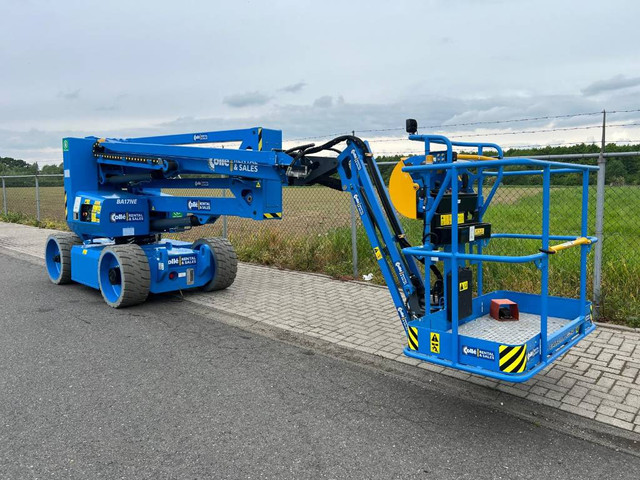

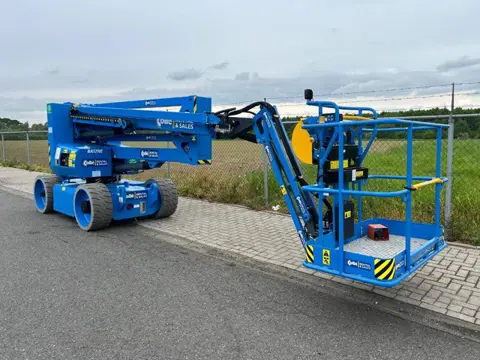

The Dingli BA17NE is a fully electric articulating boom lift with a working height of 17.10 m and a platform capacity of 225 kg. Thanks to its zero-emission electric drive, compact 1.50 m width and solid tyres, this machine is suitable for a wide range of indoor and outdoor applications.
This unit is a new 2026 machine with only 1 test hour and comes CE certified. The BA17NE offers 355° non-continuous turret rotation, 180° platform rotation, self-levelling platform, overload sensor, tilt alarm and onboard diagnostics for safe and efficient operation.
Reliable machine from Collé Rental & Sales stock, ready for immediate delivery.

=== DELIVERY ===
Crane loading possible on request for smooth transport during shipment.
Flexible shipping options tailored to your destination and logistics preferences.
All transport is professionally handled by the logistics team of Collé Rental & Sales.
