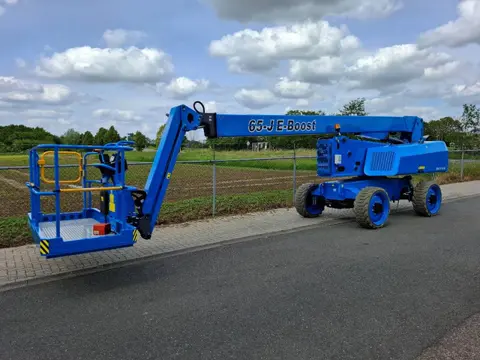

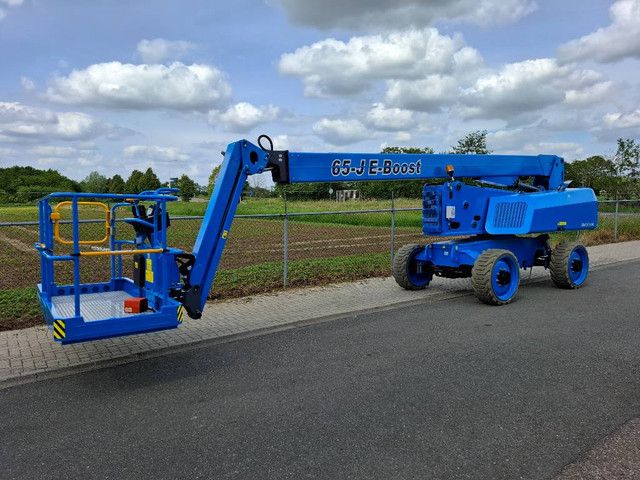

Dingli 65-J E-Boost | 2026 (bj 2026)

Algemene informatie
Merk: Dingli
Type: 65-J E-Boost | 2026
Type: Telescoophoogwerker
Bouwjaar: 2026
Kleur: Blauw
Bedrijfsuren: 2

Aandrijving
Brandstofsoort: Hybride
Aandrijving: Wiel
Merk motor: Kubota

Gewichten
Ledig gewicht: 10.220 kg

Functioneel
Mast: telescoop
Hefcapaciteit: 408 kg
Werkhoogte: 2.160 cm
Afmetingen laadruimte: 1005 x 244 x 258 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Overige informatie
Leveringsvoorwaarden: EXW
Max. horizontale reikwijdte: 1470 m
Maximaal draaibereik in graden: 360
Maximaal draaibereik platform: 180
Productieland: CN

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

=== MAIN SPECIFICATIONS ===
Year: 2026
Operating hours: 2 h (new machine / transport and test hours only)
Machine type: Self-propelled telescopic boom lift
Working height: 21.60 m @272 kg / 21.10 m @408 kg
Platform height: 19.60 m @272 kg / 19.10 m @408 kg
Max. horizontal outreach: 14.70 m @272 kg / 13.40 m @408 kg
Max. platform range: 14.10 m @272 kg / 12.80 m @408 kg
Platform capacity: 272 kg unrestricted / 408 kg restricted
Max. occupants: 2
Platform dimensions (L x W): 2.30 x 1.00 m
Platform rotation: 180°
Turntable rotation: 360° continuous
Boom type: Straight telescopic boom
Jib: Yes, 136° (-71° to +65°)
Drive: Diesel / E-Boost mild hybrid system
Four-wheel drive: Yes
Full drive height: Yes
Stabilizers: No
Tyres: Foam-filled rough-terrain tyres
Tyre size: 335/40D665NHS
Engine manufacturer: Kubota
Engine model: D1105
Engine power: 18.2 kW
Mild hybrid motor: 80V DC / 10 kW
Lithium battery: 80V / 67.5 Ah
Diesel tank: 120 L
Hydraulic tank: 95 L
Max. gradeability: 45%
Max. chassis angle: 5° / 5°
Turning radius: 3.0 m inside / 4.7 m outside
Wheelbase: 2.40 m
Ground clearance: 0.31 m
Turntable tailswing: 1.39 m
Transport dimensions (L x W x H): 10,050 x 2,440 x 2,580 mm
Gross weight: 10,220 kg
CE certification: Yes

=== HIGHLIGHTS ===
New Dingli DualReach 65-J E-Boost telescopic boom lift from 2026.
Only 2 operating hours – transport and test hours only.
DualReach boom design with telescopic and articulated operating modes.
21.60 m maximum working height and up to 14.70 m horizontal outreach.
Dual platform capacity: 272 kg unrestricted / 408 kg restricted.
4WD closed-loop positive traction drive system for strong rough-terrain performance.
Foam-filled rough-terrain tyres for demanding outdoor job sites.
Self-levelling platform with 180° platform rotation.
360° continuous turntable rotation for flexible positioning on site.
Powered by a Kubota D1105 diesel engine with E-Boost mild hybrid support.
Full drive height, fully proportional multi-function controls and on-board diagnostics.
CE certified and ready for immediate operation.

=== CONDITION ===
New machine.
Only 2 transport and test hours.
Clean, unused condition and ready for work.
Fully checked, maintained and tested by certified professionals.
Inspection possible on request.

=== LOCATION & PRICE ===
Located in Sittard, the Netherlands.
Worldwide delivery possible.
Price on request (EXW / excl. VAT).
