CMC TBJ135 | 2015 (bj 2015)

Algemene informatie
Merk: CMC
Type: TBJ135 | 2015
Type: Vrachtwagenhoogwerker
Bouwjaar: 2015
Tellerstand: 28.075 km
Kleur: Oranje

Aandrijving
Brandstofsoort: Diesel

Gewichten
Ledig gewicht: 3.500 kg

Functioneel
Mast: knikarm
Hefcapaciteit: 120 kg
Hefhoogte: 1.150 cm
Werkhoogte: 1.350 cm
Merk opbouw: Renault Maxity
CE markering: ja

Staat
Algemene staat: goed
Technische staat: goed
Optische staat: goed

Financiële informatie
BTW: De getoonde prijs is exclusief BTW

Overige informatie
Resterend profiel voorbanden: 85
Resterend profiel achterbanden: 85
Leveringsvoorwaarden: EXW
Max. horizontale reikwijdte: 510 m
Maximaal draaibereik in graden: 270
Maximaal draaibereik platform: 180
Productieland: IT

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

=== KEY SPECIFICATIONS ===
Brand: CMC
Model: TBJ135
Year: 2015
Vehicle mileage: 28,073 km
Working height: 13.50 m
Platform height: 11.50 m
Maximum horizontal outreach: 5.10 m
Platform capacity: 120 kg / 1 person
Platform dimensions: 860 x 600 x 1,100 mm
Turret rotation: 270°
Platform rotation: 180°
Gross vehicle weight: 3,500 kg
CE certification: Yes

=== EQUIPMENT & FEATURES ===
Truck-mounted aerial platform
Electro-hydraulic platform controls
Articulated boom with jib
Rotating work platform
230 V / 50 Hz connection
Low overhead clearance design
Operation without stabilisers: No

=== CONDITION ===
Used condition with visible signs of normal commercial use.
The machine shows minor scratches and paint wear, as shown in the photographs.
Inspection and operational testing are possible by appointment.

=== DESCRIPTION ===

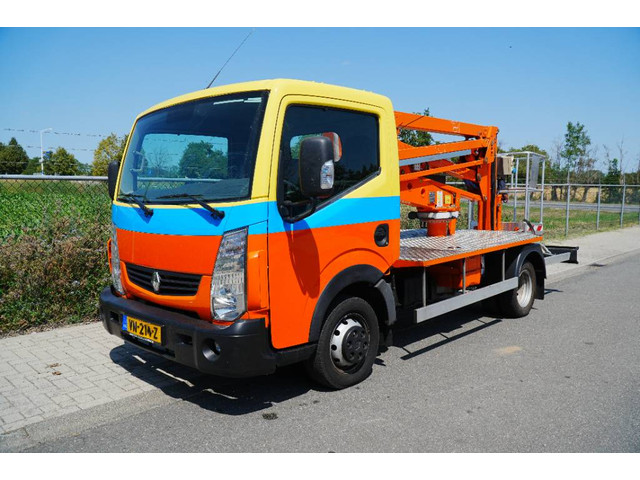

The CMC TBJ135 is a compact truck-mounted aerial platform from 2015 with 28,073 km.
It provides a working height of 13.50 m and a maximum horizontal outreach of 5.10 m.
Its low overall height allows easy access to areas with limited overhead clearance.
The machine features electro-hydraulic controls, an articulated boom with jib and a rotating one-person platform with a maximum capacity of 120 kg.

The CMC TBJ135 is suitable for maintenance work, traffic-sign installation, tunnel work and other urban applications.

=== PRICE, LOCATION & DELIVERY ===
Price: €27.500
Location: Sittard, The Netherlands
Delivery terms: EXW
Worldwide transport can be arranged by Collé Rental & Sales.
