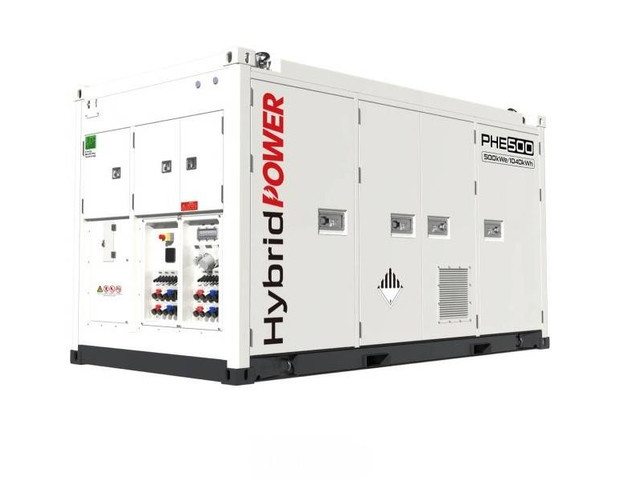

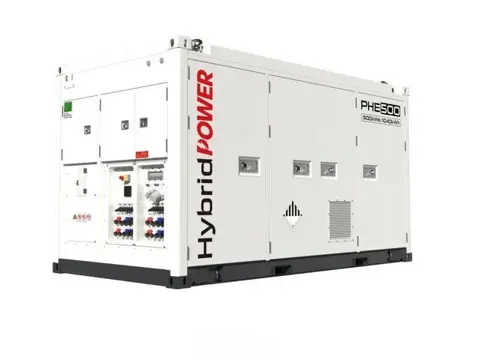

PHE500 Hybrid Energy System- 500 kVA - 1040 kWh (bj 2025)

Algemene informatie
Bouwjaar: 2025
Toepassingsgebied: Bouw
Referentienummer: DPX-20055

Technische informatie
Vermogen: 100 kW (136 PK)
Ledig gewicht: 13.000 kg
Merk motor: Cummins

Functioneel
Generatorvermogen: 500 kVA
CE markering: ja

Financiële informatie
BTW: De getoonde prijs is exclusief BTW

Overige informatie
Tankcapaciteit: 800 l
Afmetingen (LxBxH) (m): 5,3x2,1x2,45

Meer informatie
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

• Batterij
• Bedieningspaneel
• Stalen kap
• Tank

Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems
The PHE500 is 500 kVA and 1040 kWh.

- Continiuous output power: kVA/kW: 500/500
- Max. output power: kVA/kW: 550/550
- 3 Phase
- Noise level (Battery mode) dBA@7m: 55
- Noise level (Hybrid mode) dBA@7m: 65

DC/AC System:
- Rated power: kVA/kW: 4x130
- Output voltage: AC V 380/400/415 - 3P AC Charger kVA/kW: 1x60
- Parallel / On-Grid Function
PV System:
- Rated power kWp: 3x50
- Input voltage: DC V 150-750

Battery System:
- LiFePO4 / 1040 kWh
- Rated voltage: DC V 832
- Cooling system: Liquid-cooled

These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.

Input: AC socket: 3P/5W, 1x500kW - DC socket: 3x50kW - AC socket: 3P, 1x60kW
Output: AC socket: 3P/5W, 1x500kW
