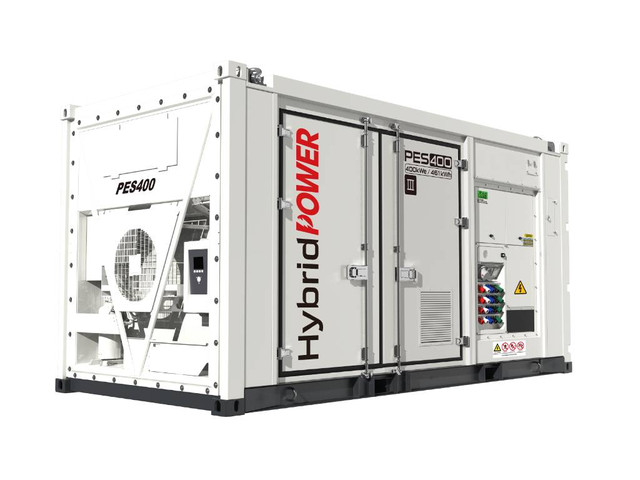

PES400 Hybrid Energy System - 400 kVA - 460.8 kWh

Algemene informatie
Bouwjaar: 2025
Toepassingsgebied: Bouw
Referentienummer: DPX-20044

Technische informatie
Vermogen: 400 kW (544 PK)
Ledig gewicht: 12.000 kg
Merk motor: Battery System: LIFePO4

Functioneel
Generatorvermogen: 400 kVA
CE markering: ja

Financiële informatie
BTW: De getoonde prijs is exclusief BTW

Overige informatie
Emissieklasse: Stage V / Tier V
Afmetingen (LxBxH) (m): 4,65x2,3x2,5

Meer informatie
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

• Bedieningspaneel
• Tank

Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems
The PES500 is 400 kVA and 460.8 kWh.

- Continiuous charge duration* (AC Charger): Unlimited
- Max. charge power: kW 4x20 - Automatic control according to changes in battery temperature.
- 3 Phase
- Noise level dBA@7m: 58

DC/AC System:
- Rated power: 400 kVA/ 400kW
- Output voltage: AC V 380/400/415
- Stanby AC charger power: kW 4x20
- Parallel / On Grid function

PV System:
- Rated power kWp: 110
- Input voltage: DC V 200-1000

Battery System:
- LiFePO4 / 460.8 kWh
- Rated voltage: DC V 768
- Cooling system: Air-cooled

These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.

Wiring port: L1, L2, L3, N, PE
Power Input:
- AC socket: 3P/5W, 1x400kW, 4x20kW
- AC copper: 3P/4W, 400kW
- DC socket: 110kW
Power Output:
- AC socket: 3P/5W, 1x400kW
- AC socket: 1P, 1x16A; 3P, 1x32A
- AC copper: 3P/4W, 400kW
