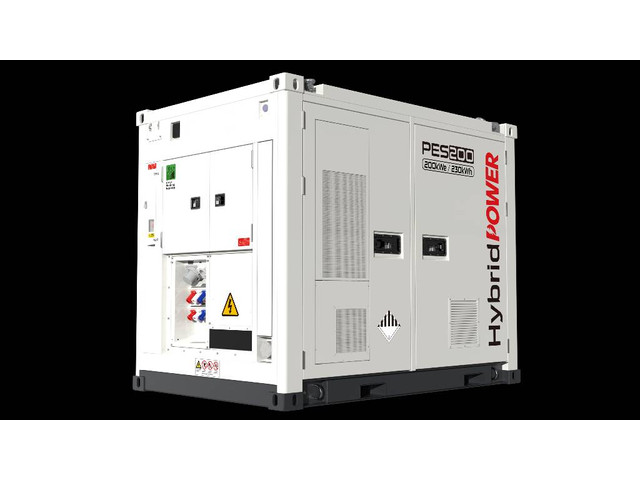

PES200 Hybrid Energy Sysyem - 260 kVA - 230.4 kWh

Algemene informatie
Bouwjaar: 2025
Toepassingsgebied: Bouw
Referentienummer: DPX-20042

Technische informatie
Vermogen: 260 kW (354 PK)
Ledig gewicht: 5.787 kg
Merk motor: Battery System: LIFePO4

Functioneel
Generatorvermogen: 260 kVA
CE markering: ja

Financiële informatie
BTW: De getoonde prijs is exclusief BTW

Overige informatie
Emissieklasse: Stage V / Tier V
Afmetingen (LxBxH) (m): 2,78x1,85x2,28

Meer informatie
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

• Bedieningspaneel
• Tank

Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems
The PES500 is 260 kVA and 230.4 kWh.

- Continiuous chargeduration* (AC Charger): Unlimited
- Max. charge power: kW 2x30 - Automatic control according to changes in battery temperature.
- 3 Phase
- Noise level dBA@7m: 58

DC/AC System:
- Rated power: 260 kVA/ 260kW
- Output voltage: AC V 380/400/415
- Stanby AC charger power: kW 2x30
- Parallel / On Grid function

PV System:
- Rated power kWp: 60
- Input voltage: DC V 200-1000

Battery System:
- LiFePO4 / 230.4 kWh
- Rated voltage: DC V 768
- Cooling system: Air-cooled

These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.

Wiring port: L1, L2, L3, N, PE
Power Input:
- AC socket: 3P/5W, 1x200kW, 2x30kW
- AC copper: 3P/4W, 200kW
- DC socket: 60kW
Power Output:
- AC socket: 3P/5W, 1x200kW
- AC socket: 1P, 1x16A; 3P, 1x32A
- AC copper: 3P/4W, 200kW
