Ortofon 2M Mono
€ 249
- Prijs:
- € 249
- Sinds:
- 45 uur
- Gezien:
- 5 keer
- Adverteerder:
- Studio107
- Plaats:
- Den Haag
- Telefoon:
- 070-3466160
- Activiteit:
- 18 jaar actief op Marktnet

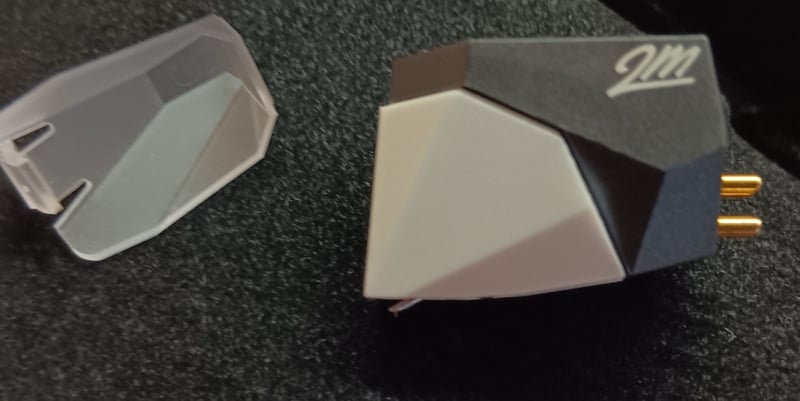

Ongebruikt mono element
2M MONO TECHNICAL DATA: Output voltage at 1000 Hz, 5cm/sec. - 4 mV Channel balance at 1 kHz - Channel separation at 1 kHz - Channel separation at 15 kHz - Frequency range at - 3dB - 20-22.000 Hz Frequency response - 20-20.000 Hz + 3 / - 1 dB Tracking ability at 315Hz at recommended tracking force - 70 µm Compliance, dynamic, lateral - 18 µm/mN Stylus type - Nude Spherical Stylus tip radius - R18 µm Tracking force range - 1,6-2,0g (16-20 mN) Tracking force, recommended - 1,8 g (18 mN) Tracking angle - 20°
Internal impedance, DC resistance - 700 Ohm Internal inductance - 350 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 150-300 pF Cartridge colour, body/stylus - Black/White Cartridge weight without screws - 7,2 g Replacement stylus unit - 2M Mono (interchangeable with 2M 78 )
2M MONO TECHNICAL DATA: Output voltage at 1000 Hz, 5cm/sec. - 4 mV Channel balance at 1 kHz - Channel separation at 1 kHz - Channel separation at 15 kHz - Frequency range at - 3dB - 20-22.000 Hz Frequency response - 20-20.000 Hz + 3 / - 1 dB Tracking ability at 315Hz at recommended tracking force - 70 µm Compliance, dynamic, lateral - 18 µm/mN Stylus type - Nude Spherical Stylus tip radius - R18 µm Tracking force range - 1,6-2,0g (16-20 mN) Tracking force, recommended - 1,8 g (18 mN) Tracking angle - 20°
Internal impedance, DC resistance - 700 Ohm Internal inductance - 350 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 150-300 pF Cartridge colour, body/stylus - Black/White Cartridge weight without screws - 7,2 g Replacement stylus unit - 2M Mono (interchangeable with 2M 78 )
Meer informatie:
https://www.studio107.nl/a-102781319/elementen/ortofon-2m-mono/
Advertentienummer: 95594107
