DPX Power Loadbank AC400V-500 kW - DPX-30022 (bj 2025)

Type: Bouwmachine
Bouwjaar: 2025
Ledig gewicht: 690 kg
CE markering: ja
Garantie: Warrenty Card - 12 Months
BTW: De getoonde prijs is exclusief BTW
Referentienummer: DPX-30022
Afmetingen (LxBxH) (m): 1,94x1,45x1,44
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

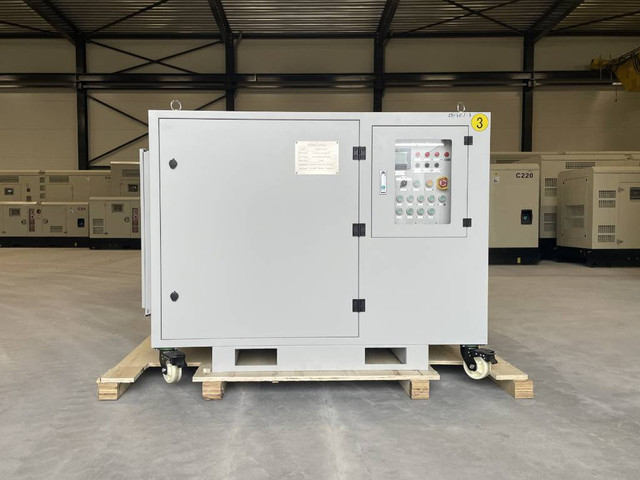

AC400V-500kW Automatic Load Bank

Rated Voltage: 3P4W AC400V 50/60Hz
Rated Voltage & Frequency : 400VAC; 3 phase 4 wire, 50Hz
Power Supply: External 3P5W 400VAC 50 Hz
Rated Power: 510 kW
Duty Cycle: Continuous
Cooling type: Forced Air Cooling (Horizontal inlet air and upwards exhaust cooling)

Load Steps: Resistive Load: 11 steps, 1, 2, 2, 5, 10, 20, 20, 50, 100, 100, 200kW

Wire Connection:
- Load bank input—busbar (star coupling “Y”)
- Control power input—terminal block
Communication Interface: RS232/RS485
