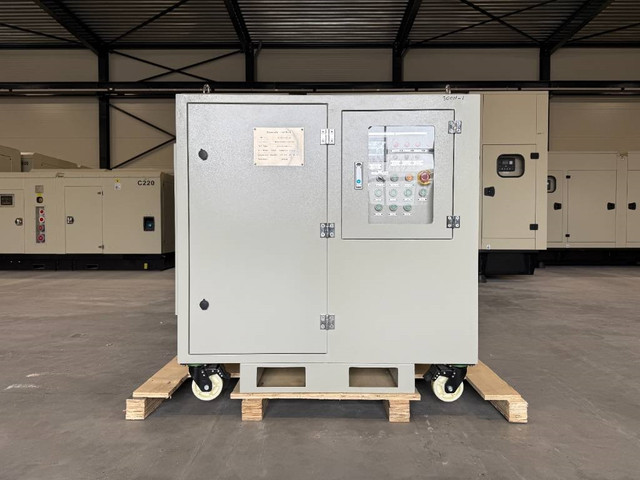

DPX Power Loadbank AC400V-200 kW - DPX-30021 (bj 2025)

Type: Bouwmachine
Bouwjaar: 2025
Ledig gewicht: 400 kg
CE markering: ja
Garantie: Warrenty Card - 12 Months
BTW: De getoonde prijs is exclusief BTW
Referentienummer: DPX-30021
Afmetingen (LxBxH) (m): 1,5x1,3x1,07
Neem voor meer informatie contact op met Kenny Bongers (+31 203234701, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

AC400V-200kW Automatic Load Bank

Rated Voltage: 3P4W AC400V 50/60 Hz
Rated Voltage & Frequency: 400VAC; 3 phase 4 wire, 50/60 Hz
Power Supply: 3P5W AC400V 50 Hz
Rated Power: 200 kW at 400V
Duty Cycle: Continuois
Cooling Type: Forced Air Cooling
(Horizontal air intake and exhaust cooling, there will be louver at air outlet and inlet.)

Load Steps: Resistive Load: 9 steps, 1, 2, 2, 5, 10, 10, 20, 50, 100 kW

Wire Connection:
- Load bank input— busbar (star coupling “Y”)
- Control power input—terminal block
Communication Interface: RS232/RS485
