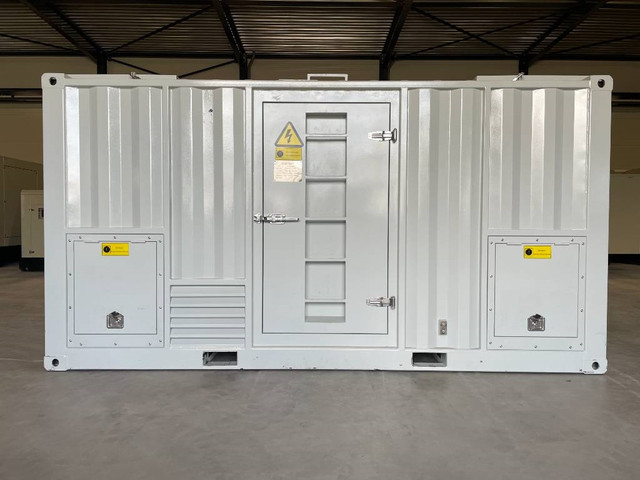

DPX Power Loadbank AC400V-2.000 kW - DPX-30028 (bj 2025)

Type: Bouwmachine
Bouwjaar: 2025
Ledig gewicht: 10.000 kg
BTW: De getoonde prijs is exclusief BTW
Referentienummer: DPX-30028
Serienummer: 2411167
Afmetingen (LxBxH) (m): 4x2,1x2,1
Neem voor meer informatie contact op met Kenny Bongers (+31 203234701, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

AC400V-2000kW Automatic Load Bank

Rated Voltage: 3P4W 400VAC 50/60Hz
Power Supply: External 3P5W 400VAC 50 Hz
Rated Power: 2.000 kW
Duty Cycle: Continuous
Cooling type: Forced Air Cooling (Horizontal inlet air and upwards exhaust cooling)

Load Steps @400V: 1, 2, 2, 5, 10, 10, 20, 50, 100, 200, 200, 200, 200, 200, 200, 200, 200, 200kW, total 2000kW
Note: when voltage is less than 400V, power will derate according to Ohm’s Law.

Wire Connection:
- Load bank input—busbar
- Control power input—terminal block
Communication Interface: RS232/RS485 - Control part IP54

Remote controller:
Dimentions case: ± 492x395x216MM
weight case: ± 10 kg
