ABB DPA 250 S4 - UPS System - DPX-12647 (bj 2023)

Merk: ABB
Type: DPA 250 S4 - UPS System - DPX-12647
Type: Bouwmachine
Bouwjaar: 2023
BTW: De getoonde prijs is exclusief BTW
Referentienummer: DPX-12647
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

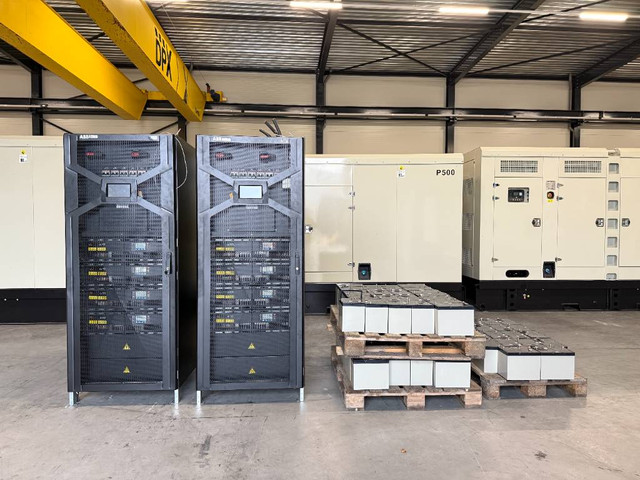

Complete ABB DPA250 S4 Modular UPS system
200kW, 200kVA power per cabinet
176 pieces of 80Ah, 12V batteries with a total of 169 kWh battery capacity

Input:
Nominal input voltage: 220 to 380, 230 to 400, 240 to 415 VAC
Voltage range: 161 to 280, 264 to 460 VAC
Current THD at 100% load: 3% or less
Power Factor at 100% load: 0.99 or higher

Output:
Rated output voltage load dependent: 220 to 380, 230 to 400, 240 to 415 VAC
Rated frequency: 50 or 60 Hz selectable

2x Cabinet ABB DPA 250 S4
8x 50kW, 50kVA module (4 per Cabinet)
176x 80Ah, 12V batteries with a total of 169 kWh battery capacity
2x switch/breaker cabinet
