Manitou MHT 10135 | 2023 (bj 2023)

Algemene informatie
Merk: Manitou
Type: MHT 10135 | 2023
Type: Verreiker
Bouwjaar: 2023
Kleur: Red
Bedrijfsuren: 1

Technische informatie
Vermogen: 127 kW (173 PK)
Motorinhoud: 4.567 cc
Ledig gewicht: 19.500 kg

Aandrijving
AdBlue-systeem: Ja
Aandrijving: Wiel
Merk motor: 4TN107FTT-6SMU1

Asconfiguratie
Bandenmaat: 17,5-R25

Prestaties
Topsnelheid: 35 km/u

Functioneel
Hefcapaciteit: 13.500 kg
Hefhoogte: 960 cm
Maximale reikwijdte: 520 cm
CE markering: ja

Staat
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed

Overige informatie
Vermogen van aanvullende hydraulica: 172 l/min
Emissieklasse: Stage V / Tier IV final
Leveringsvoorwaarden: EXW
Afmetingen (LxBxH) (m): 735025402,99
Productieland: FR

Meer informatie
Neem voor meer informatie contact op met Sales Department Collé Sittard (+31 464 574 100, +31464574100, [email protected])

• AdBlue
• Airconditioning
• Palletvorken

=== MAIN SPECIFICATIONS ===
Year: 2020
Operating hours: 0 h (new)
Maximum lifting capacity: 13,500 kg
Maximum lifting height: 9.60 m
Maximum outreach: 5.20 m
Drive type: Diesel
Transmission: Hydrostatic (automatic)
Four-wheel drive: Yes (4WD – 4WS)
Steering modes: 2-wheel steer / 4-wheel steer / Crab mode
Stabilizers: No
Cabin: Enclosed (ROPS-FOPS Level 2 certified)
Heated cabin: Yes
Fork length: 1,200 mm × 180 mm × 75 mm
Tyres: 17.5-R25 (rough-terrain)
Engine manufacturer: Yanmar 4TN107FTT-6SMU1
Engine power: 127 kW (173 hp) @ 2,200 rpm
Maximum torque: 805 Nm @ 1,500 rpm
Emission class: Stage V / Tier 4 Final
Operating weight: 19,950 kg (with forks)
Ground clearance: 0.43 m
Wheelbase: 3.37 m
Turning radius (outside wheels): 5.35 m
Maximum travel speed: 35 km/h
Hydraulic system: Load-sensing pump, 172 l/min @ 350 bar
Fuel tank capacity: 315 l (+ 24 l AdBlue®)
CE certification: Yes

=== HIGHLIGHTS ===
Selected from verified and reliable sources with traceable history
CE certified with complete documentation included
Ready for immediate operation and transport
Comprehensive technical documentation available

=== CONDITION ===
Brand-new machine – unused and in factory condition.
Fully inspected and tested by certified professionals.
Available for immediate delivery.

=== LOCATION & DELIVERY ===
Located in Sittard, The Netherlands.
Worldwide delivery available.
Price on request (EXW / excl. VAT).

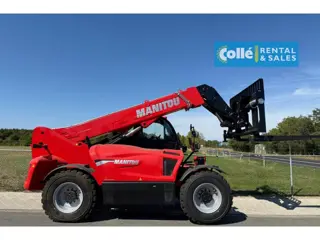

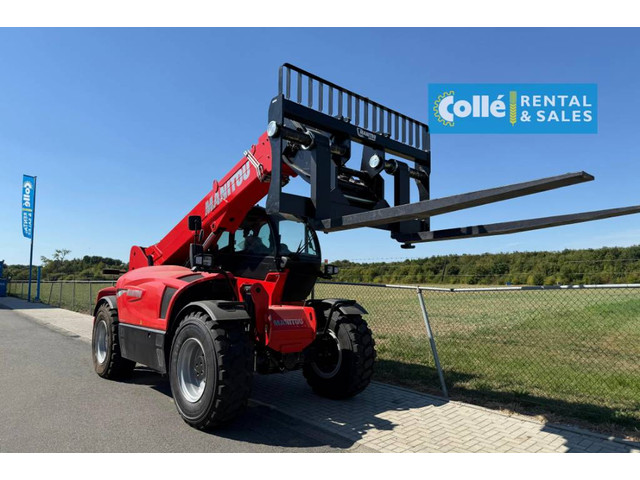

The Manitou MHT 10135 is a high-capacity telescopic handler designed for heavy-duty industrial and construction operations.
Powered by a Stage V Yanmar engine delivering 173 hp and 805 Nm of torque, this machine offers superior lifting performance up to 13.5 tons and a height of 9.6 m.
Its hydrostatic transmission and four-wheel drive/steering provide smooth maneuverability and optimal stability on rough terrain.
Equipped with a ROPS/FOPS Level 2 cabin featuring Manitou’s JSM joystick control system, the MHT 10135 combines comfort, precision and safety.
All machines from Colle Rental & Sales are CE approved, fully tested and ready for immediate operation.
Spare parts and professional technical support available upon request.

=== DELIVERY ===
Crane loading available on request for smooth and safe...
