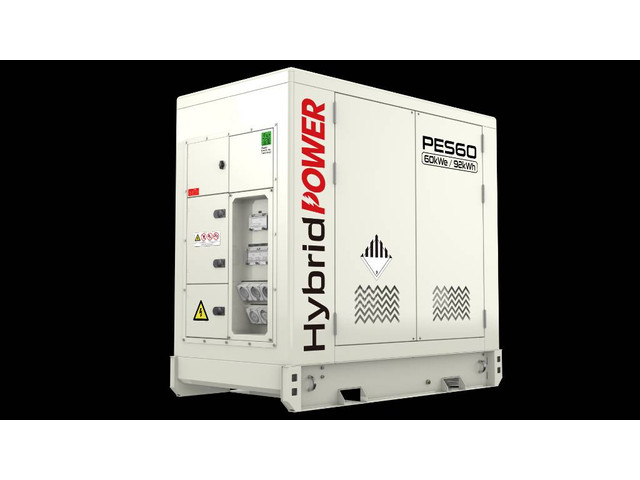

PES60 Hybrid Energy System - 60 kVA - 92 kWh (bj 2025)

Algemene informatie
Bouwjaar: 2025
Toepassingsgebied: Bouw
Referentienummer: DPX-20040

Technische informatie
Vermogen: 72 kW (98 PK)
Ledig gewicht: 3.000 kg
Merk motor: Battery System: LIFePO4

Functioneel
Generatorvermogen: 72 kVA
CE markering: ja

Financiële informatie
BTW: De getoonde prijs is exclusief BTW

Overige informatie
Afmetingen (LxBxH) (m): 1,6x1,1x1,6

Meer informatie
Neem voor meer informatie contact op met Kenny Bongers (+31 631698138, [email protected]), Tijmen Pesselse (+31 649905691, [email protected]), Arjen van Dijk (+31 623024203, [email protected]) of DPX Power (+31 649 905 691, +31 631698138, [email protected])

• Batterij
• Bedieningspaneel

Portable Hybrid System - Portable Energy Storage System - Solar System - Battery Energy Storage Systems
The PES500 is 60 kVA and 92 kWh.

- Continiuous chargeduration* (AC Charger): Unlimited
- Max. charge power: kW 1x30 - Automatic control according to changes in battery temperature.
- 3 Phase
- Noise level dBA@7m: 50

DC/AC System:
- Rated power: 60 kVA / 60kW
- Output voltage: AC V 380 /400 / 415
- Stanby AC charger power: kW 1x30
- Parallel / On Grid function

PV System:
- Rated power kWp: 60
- Input voltage: DC V 200-800

Battery System:
- LiFePO4 / 92 kWh
- Rated voltage: DC V 614
- Cooling system: Air-cooled

These systems can store energy from various sources, including Solar, Wind, Generator electricity, and the City grid, and discharge it when needed, providing high-quality electric energy.

This model is also possible in PES30 - 36 kVA, 36 kW, 62 kWh

Power connection Input:
- AC socket: 3P/5W, 1x60kW, 1x30kW
- AC copper: 3P/4W, 60kW
- DC socket: 60kW
Power connection Output:
- AC socket: 3P/5W, 1x60kW
- AC socket: 1P, 1x16A; 3P, 1x32A
- AC copper: 3P/4W, 60kW
