Faymonville STNZ-7WAA (bj 2011)

Merk: Faymonville
Type: STNZ-7WAA
Opbouw: Dieplader
Bouwjaar: 2011
Uitschuifbare opbouw: Ja
Serienummer: YAFTL711000012384
Neem voor meer informatie contact op met Theo Lelie (+31 525 652 156, 0031653837071, [email protected])

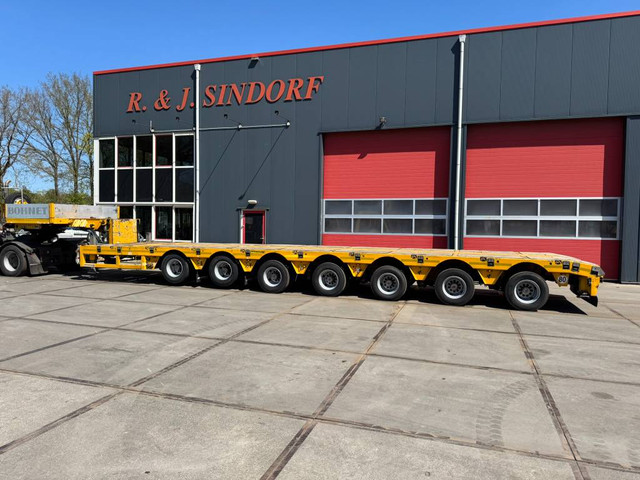

Faymonville STNZ-7WAA 7 axle semi / stepframe lowloader

YAFTL711000012384
12-2011
Hydraulic suspension
235/75R17.5 tyres
Last 5 axles Hydraulic steert
Extra remote steering (radio control)
First 2 Axle’s are lift axles
First axle is a positive steert / selftracking axle
Hydraulic Gooseneck
Its own 24V electro-hydraulic powerpack

Loadingfloorlenght 12.000 mm + 9.000 mm + 8.500 mm extendible
Total length 16.000 mm + 9.000 mm + 8.500 mm till 33.500 mm
Width 2.550 mm + side extensions till 3.000 mm

Weights in kg

7 x 10.000 kg axle load
30.000 kg fifth wheel load
100.000 kg total weight
Ca 22.600 kg own weight
Ca 77.400 kg loading capacity

ABS
