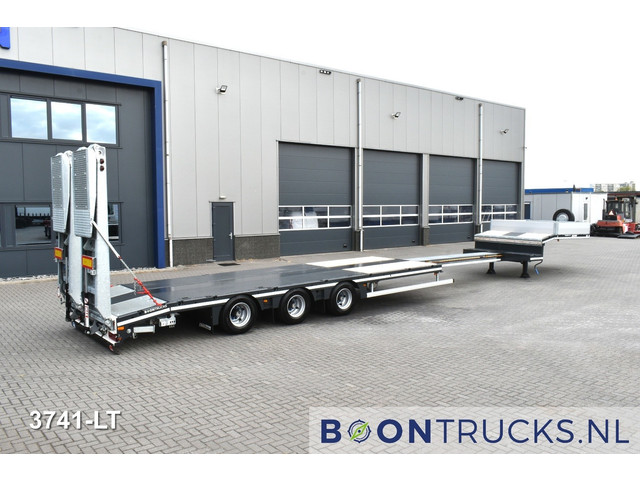

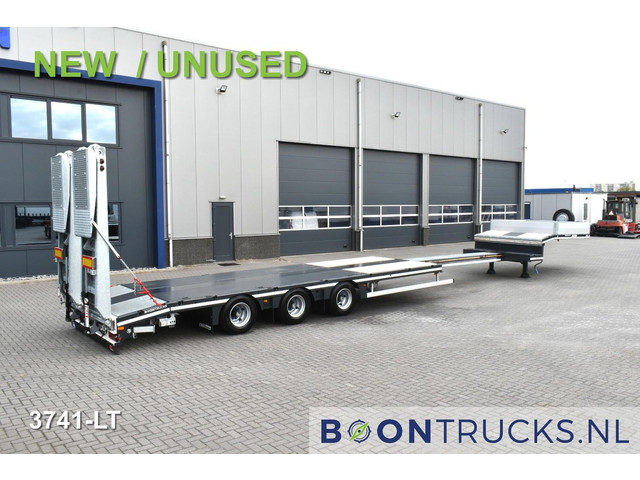

Faymonville MAX TRAILER 100 F-S43-1AAF NEW / UNUSED | 450 cm EXTENDABLE * 86cm HEIGHT * HYDR RAMPS *

General information
Brand: Faymonville
Model: MAX TRAILER 100 F-S43-1AAF
Bodywork: Low loader
Year of manufacture: Mar 2024
Year of construction: 2024
Reference number: 3741-LT
Serial number: YAMT13XX6P0109072

Axle configuration
Tyre size: 235/75 R17.5
Make axles: BPW
Brakes: drum brakes
Suspension: air suspension
Rear axle 1: Double wheels; Max. axle load: 10500 kg; Tyre profile left inner: 90%; Tyre profile left outer: 90%; Tyre profile right outer: 90%; Tyre profile right outer: 90%
Rear axle 2: Double wheels; Max. axle load: 10500 kg; Tyre profile left inner: 90%; Tyre profile left outer: 90%; Tyre profile right outer: 90%; Tyre profile right outer: 90%
Rear axle 3: Double wheels; Max. axle load: 10500 kg; Steering; Tyre profile left inner: 90%; Tyre profile left outer: 90%; Tyre profile right outer: 90%; Tyre profile right outer: 90%

Weights
Empty weight: 10.581 kg
Carrying capacity: 38.919 kg
GVW: 49.500 kg

Functional
Dimensions of cargo space: 1315 x 255 x 86 cm

Condition
General condition: very good
Technical condition: very good
Visual appearance: very good

• 1 Steering axle
• ABS
• Air suspension
• BE registration
• BPW axles
• Drum brakes
• EBS
• Extendable
• Hardwood floor
• Lashing eyes in side bar
• Leasing possible
• LED-lighting
• Metalized
• Spare wheel
• Stake pockets in side bar
• Toolbox

Speed: 80 km/h
Total weight: 49,500 kg
Coupling pressure: 18,000 kg
Axle load: 31,500 kg
Own weight (+/- 3%): 10 579 kg
Payload approx.: 38,921 kg
Gooseneck length: 3850 mm
Loaded coupling height: 1280 mm
Forward radius: 2300 mm
Loading floor length: 9300 mm
Extendable: 4500 mm
Axle distance: 1360 mm
Loading floor height: 860 mm
Vehicle ground width: 2540 mm
Suspension travel: -55/ +145 mm

Twistlock positions for 20 & 40ft

Swan neck:

Gooseneck with bevelled corners at the front ± 45° and bevel at the rear, ± 750 mm x 10°.
3 pairs of fastening rings (LC 5 000 daN).
Hardwood siding 30 mm thick.

Loading floor:

Extendable loading floor with bevel at the rear of the vehicle approx. 1,000 mm x 8°.
6 pairs of mounting rings that can be folded outwards (LC 5 000 daN).
3 pairs of mounting rings that can be folded outwards (LC 10,000 daN).
1 pair of tie-down rings at the front of the loading floor (LC 10 000 daN).
Recesses in the outer frame for attaching tension straps. (LC 2,000 daN)
Hardwood cladding 48 mm thick above the axes, teardrop-shaped steel plate.

Driveways:

1 pair of two-piece galvanized steel ramps measuring 2,750 + 1,400 x 900 mm with anti-slip grating C40/4 (for
point load of 2.2 to on an area of 20 x 20 cm). Hydraulically operated ramps with hydraulic lifting gear and
Hydraulically movable. Maximum load per pair: 40,000 kg
In accordance with Regulation 1230/2012/EU, ramps with a body length of less than 300 mm do not need to
be taken into account when determining the length of the vehicle.
