Broshuis 7 ABSD (bj 2014)

Merk: Broshuis
Type: 7 ABSD
Opbouw: Dieplader
Bouwjaar: 2014
Productieland: NL
Neem voor meer informatie contact op met Theo Lelie (+31 525 652 156, 0031653837071, [email protected])

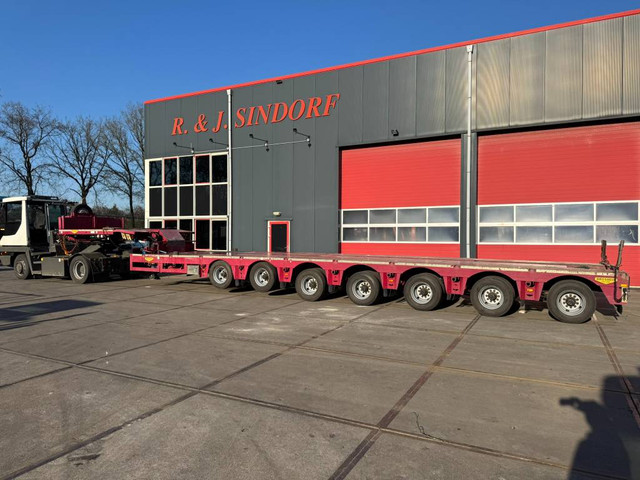

Broshuis 7ABSD 7 axle semi / stepframe lowloader

07-2014
Hydraulic suspension
245/70R17.5 tyres
Last 6 axles Hydraulic steert
Extra remote steering (radio control)
First 2 Axle’s are lift axles
Hydraulic Gooseneck
Its own 24V electro-hydraulic powerpack

Loadingfloorlenght 11.900 mm + 9.000 mm + 8.800 mm extendible
Total length 16.350 mm + 9.000 mm + 8.800 mm till 34.150 mm
Width 2.730

Weights in kg

7 x 12.300 kg axle load
30.000 kg fifth wheel load
116.100 kg total weight
Ca 26.320 kg own weight
Ca 89.780 kg loading capacity

ABS
